Five pumps for LPG, propane and other liquefied gases.
Every YAM pump handles up to 22 kg/cm² (21.5 bar) and ships in ready-to-use condition, with its hoses and valves in the carton.

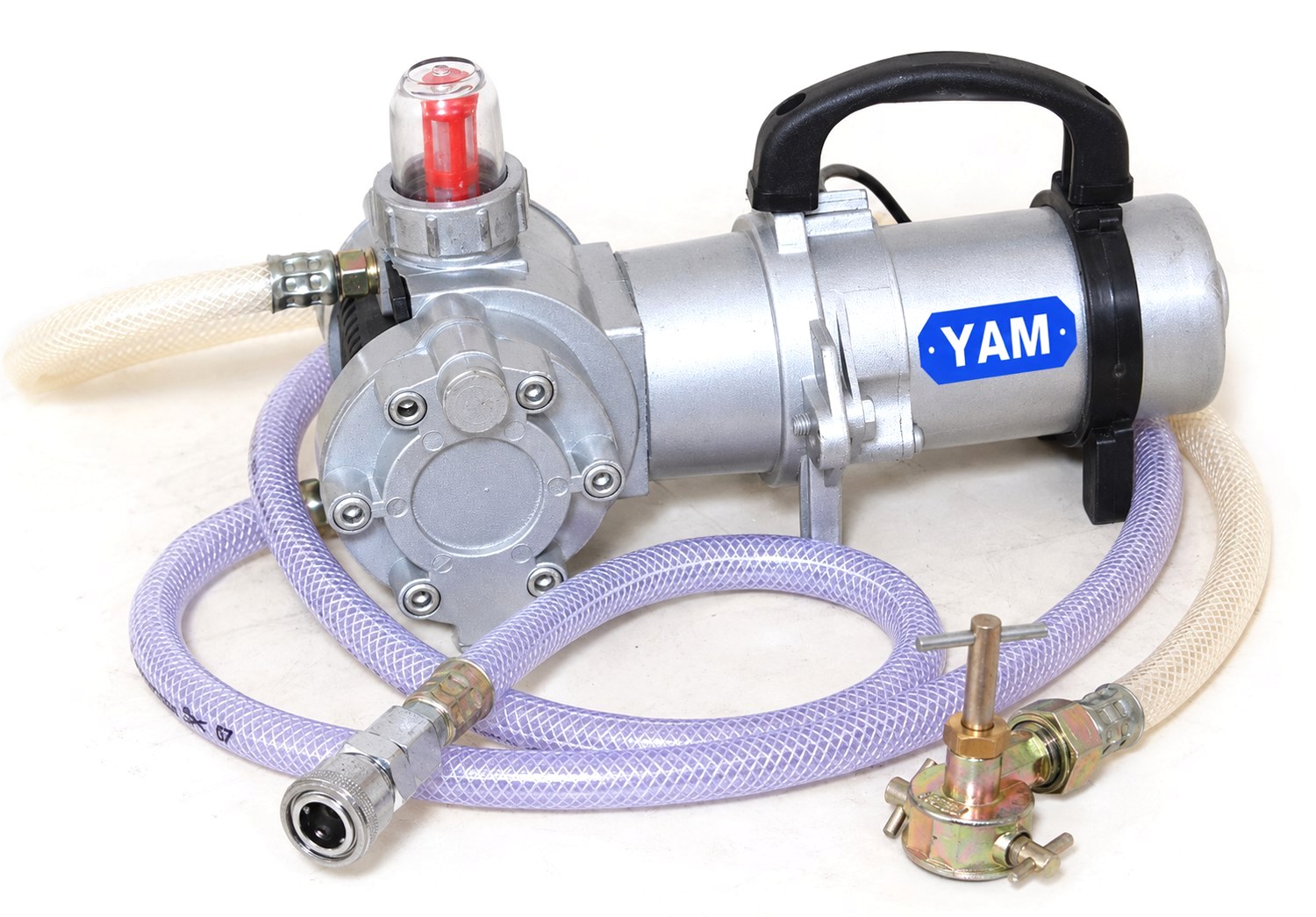

0.5 HP 12V DC LPG Pump
A portable, light and compact pump made to be carried in the car and used wherever it is needed. This 0.5 HP diaphragm pump connects directly to a 12V car battery, so it works in every country, whatever the mains voltage.

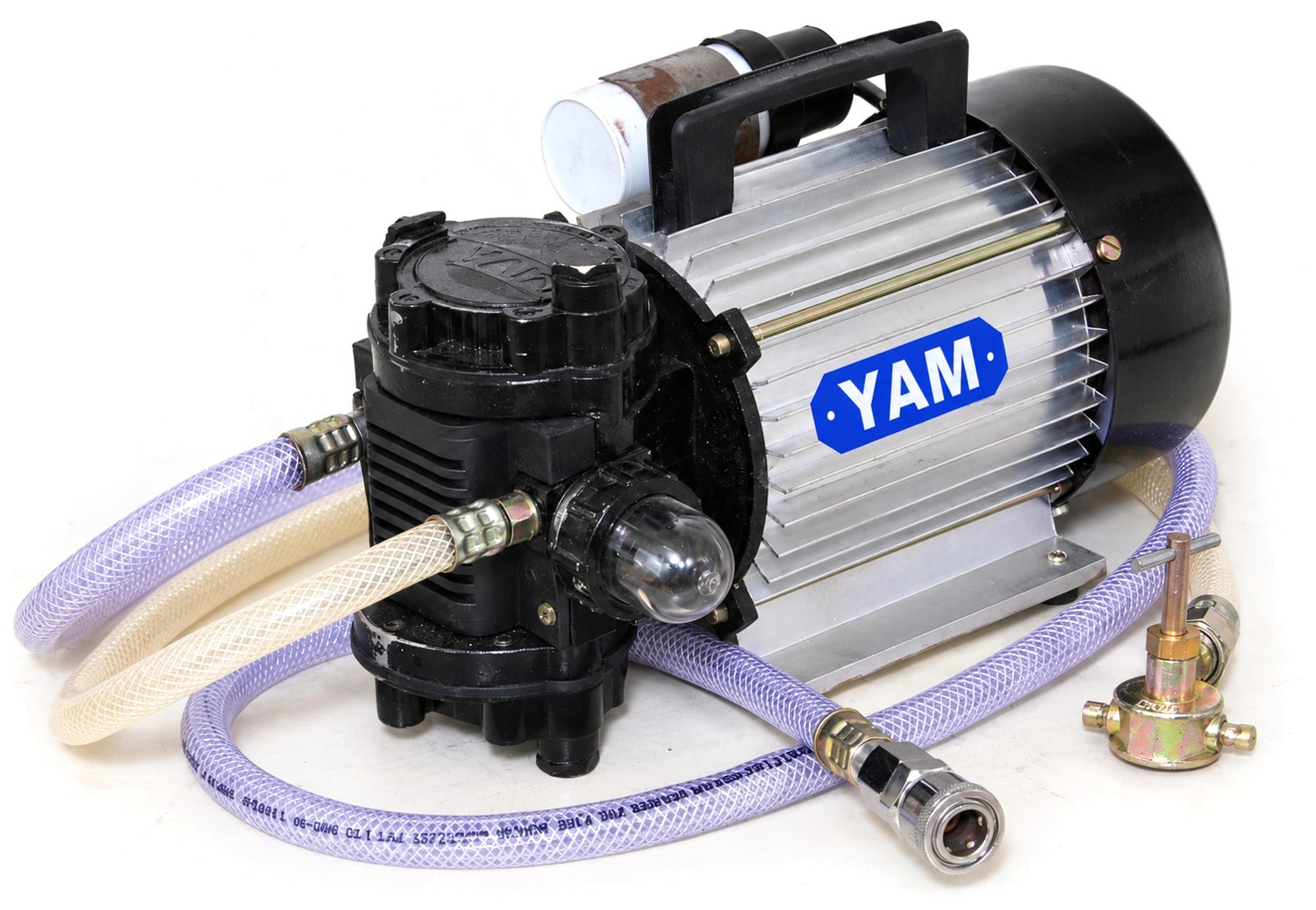

0.5 HP 220V AC LPG Pump
A compact 220V diaphragm pump for transferring liquefied gas. It is easy to carry and easy to use. For 220V countries only. If your mains is 110V, choose the 12V DC pump.

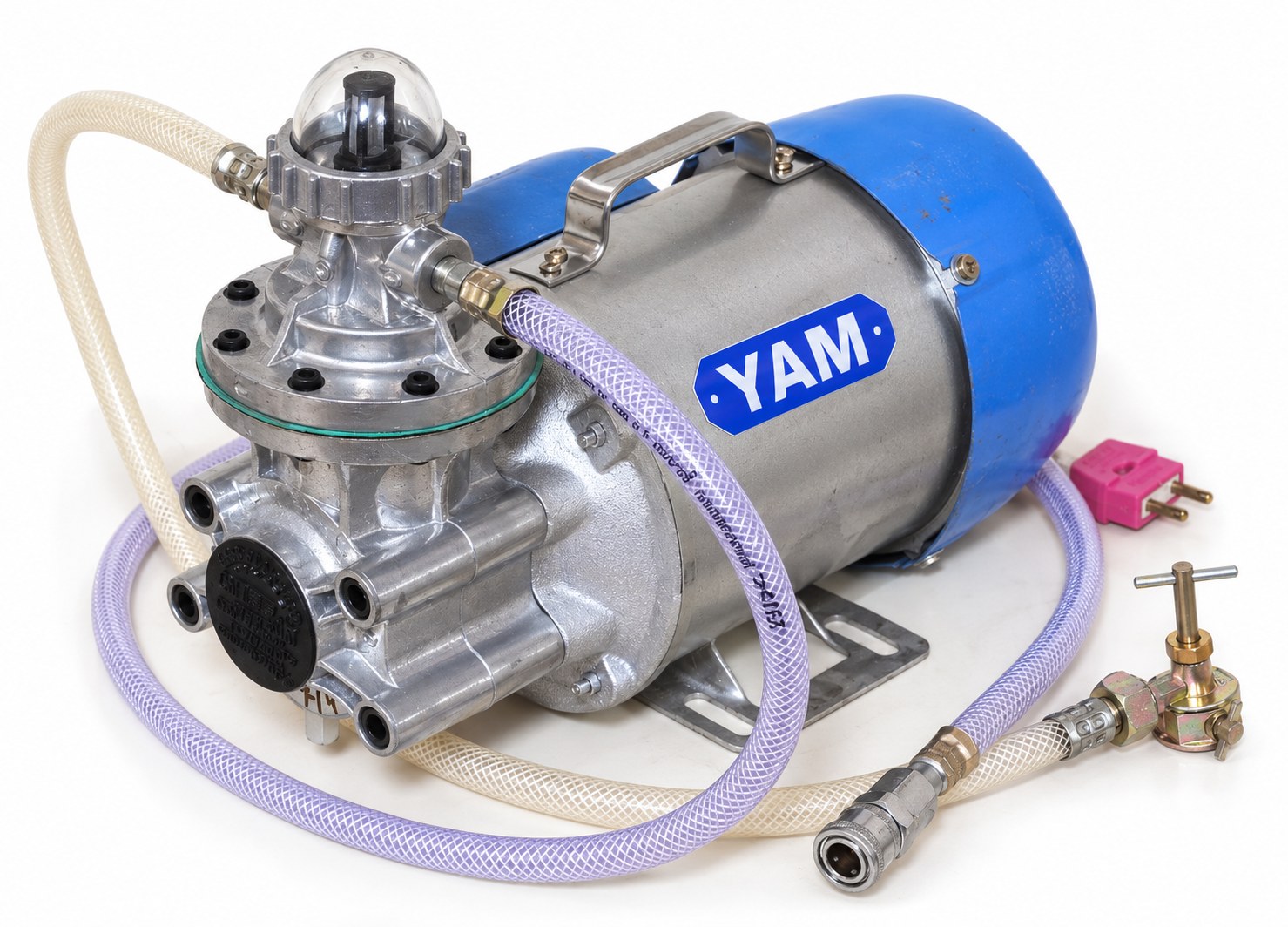

1 HP 220V Commercial LPG Pump
A heavy-duty 1 HP pump, recommended for commercial use where the pump works through the day.

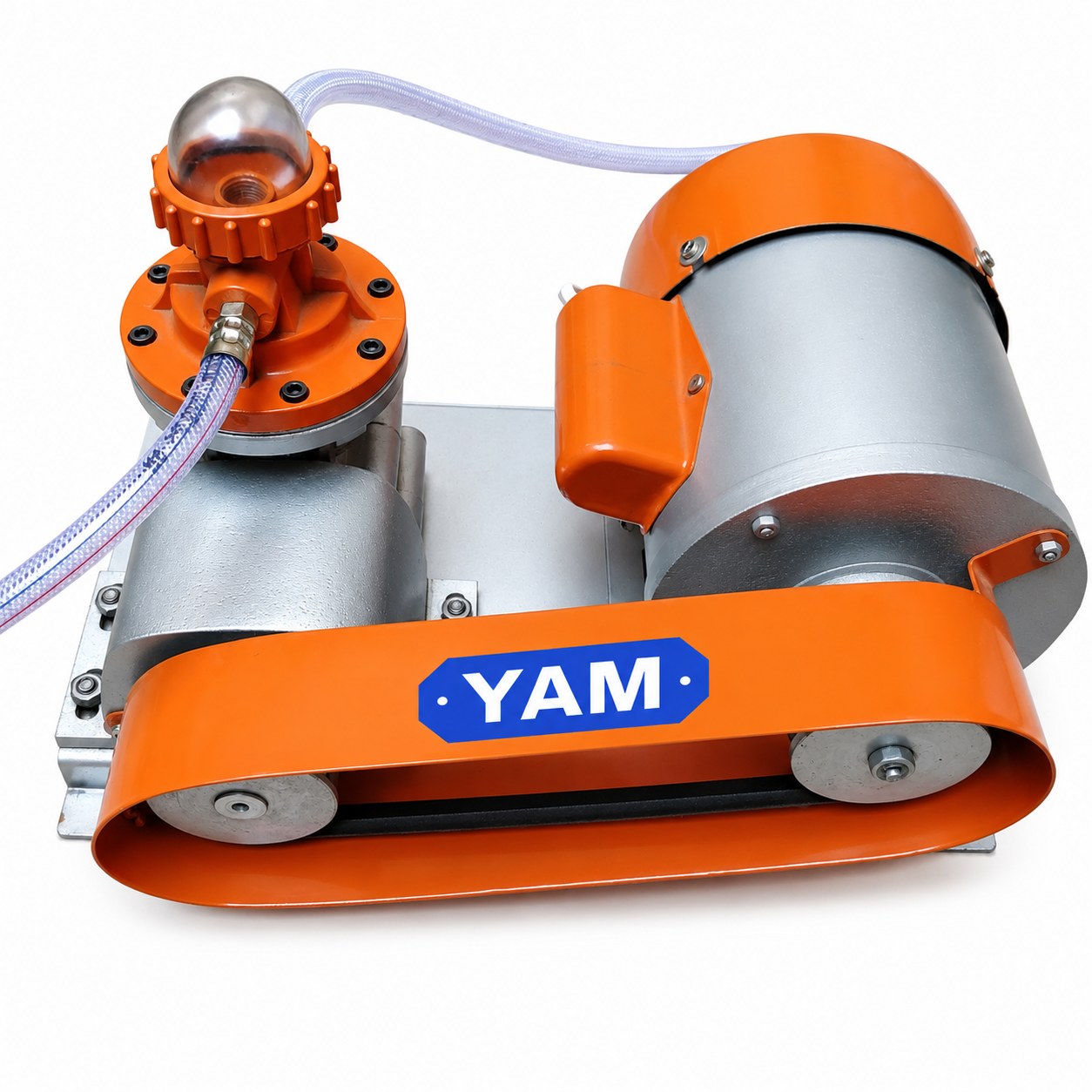

1 HP 220V Belt-Drive LPG Pump
The same 1 HP performance as the commercial pump, with the motor driving the pump through a belt. We can supply it complete with the motor, or as the pump alone if you already have a motor.

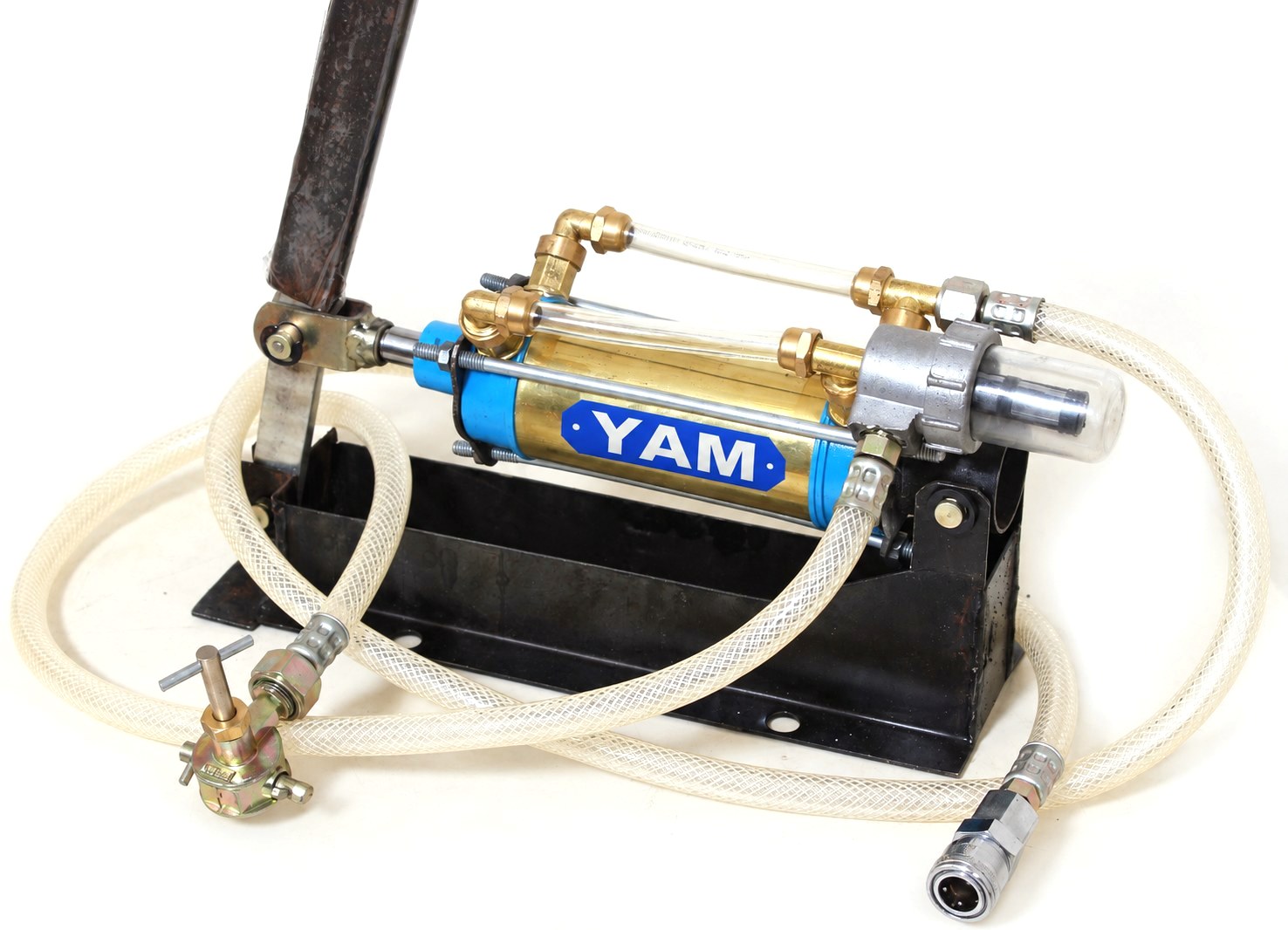

Manual LPG Pump
A hand-operated pump for transferring liquefied gas where there is no power supply. Transfer speed depends on the user.
Side by side.
| 12V DC | 220V AC | 1 HP Commercial | 1 HP Belt Drive | Manual | |
|---|---|---|---|---|---|
| Power | 12 V DC | 220 V AC | 220 V AC | 220 V AC | Hand |
| Motor | 0.5 HP | 0.5 HP | 1 HP | 1 HP, belt (optional) | None |
| Shipping weight | 6 kg | 7 kg | 18 kg | 22 kg (10 kg without motor) | 5 kg |
| Transfer rate | ≈ 2 kg/min | ≈ 2 kg/min | ≈ 2 kg/min | ≈ 2 kg/min | User dependent |
| 15 kg cylinder | 7–8 min | 7–8 min | Ask us | Ask us | 12–14 min |
| Max pressure | 21.5 bar | 21.5 bar | 21.5 bar | 21.5 bar | 21.5 bar |
| Guarantee | 1 year | 1 year | 1 year | 1 year | 1 year |
| Best for | In-car, on the move | Home and workshop | Commercial use | Commercial use | No power supply |

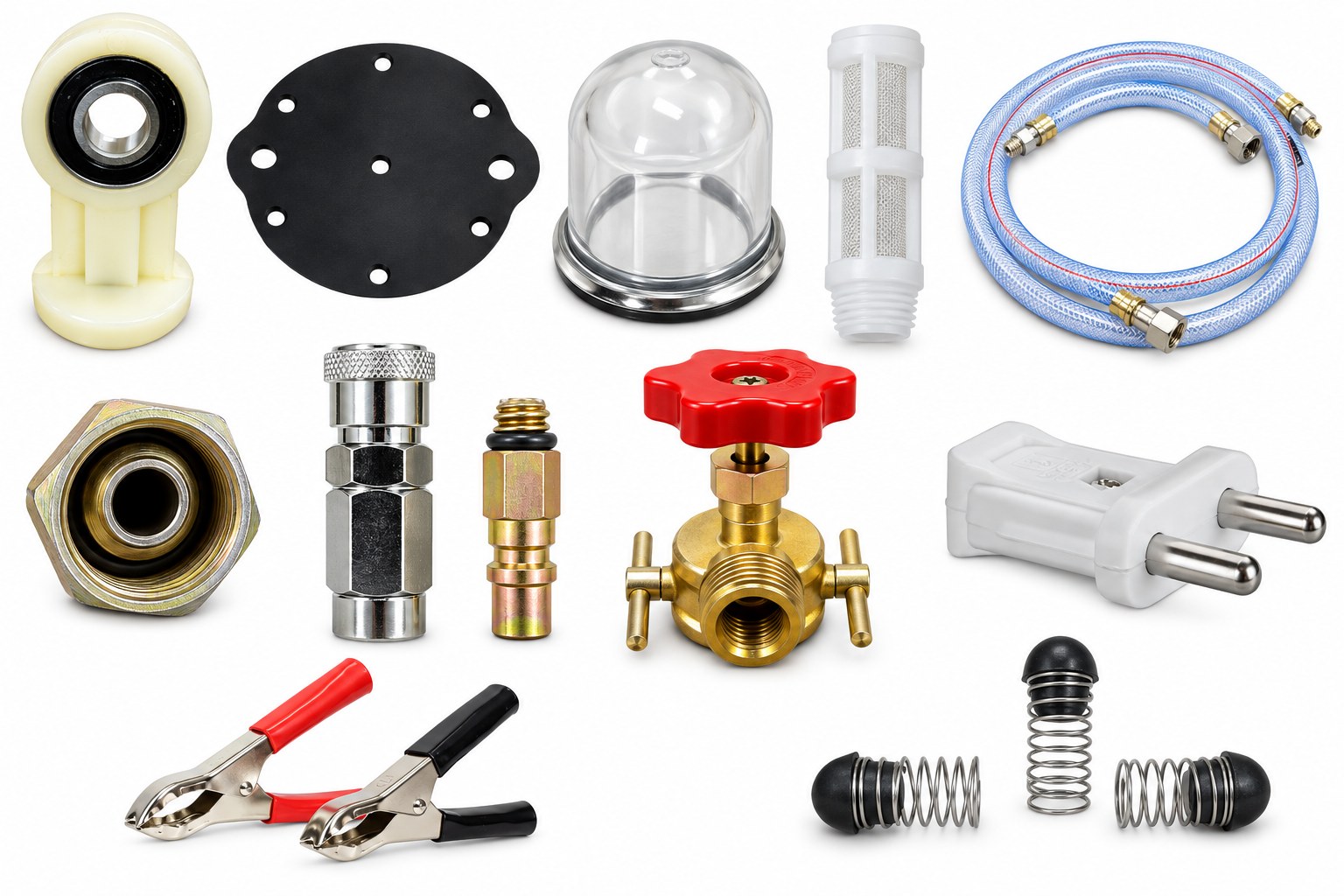

All parts and many spares, with every pump.
The diaphragm is the part that wears, and it is easy to change yourself. If you ever need more, tell us the model and the part and we will ship it.
